Garage Door Garage Door
Powerful, Enduring and
Safe Recommend
Soft start/stop operation can extend hardware life and reduce maintenance.
Motor built-in with LED light (specific model)
Quick Setting
Safe Operation
Smooth Motion
Quality Guarantee
Back-up Battery
Easy Installation

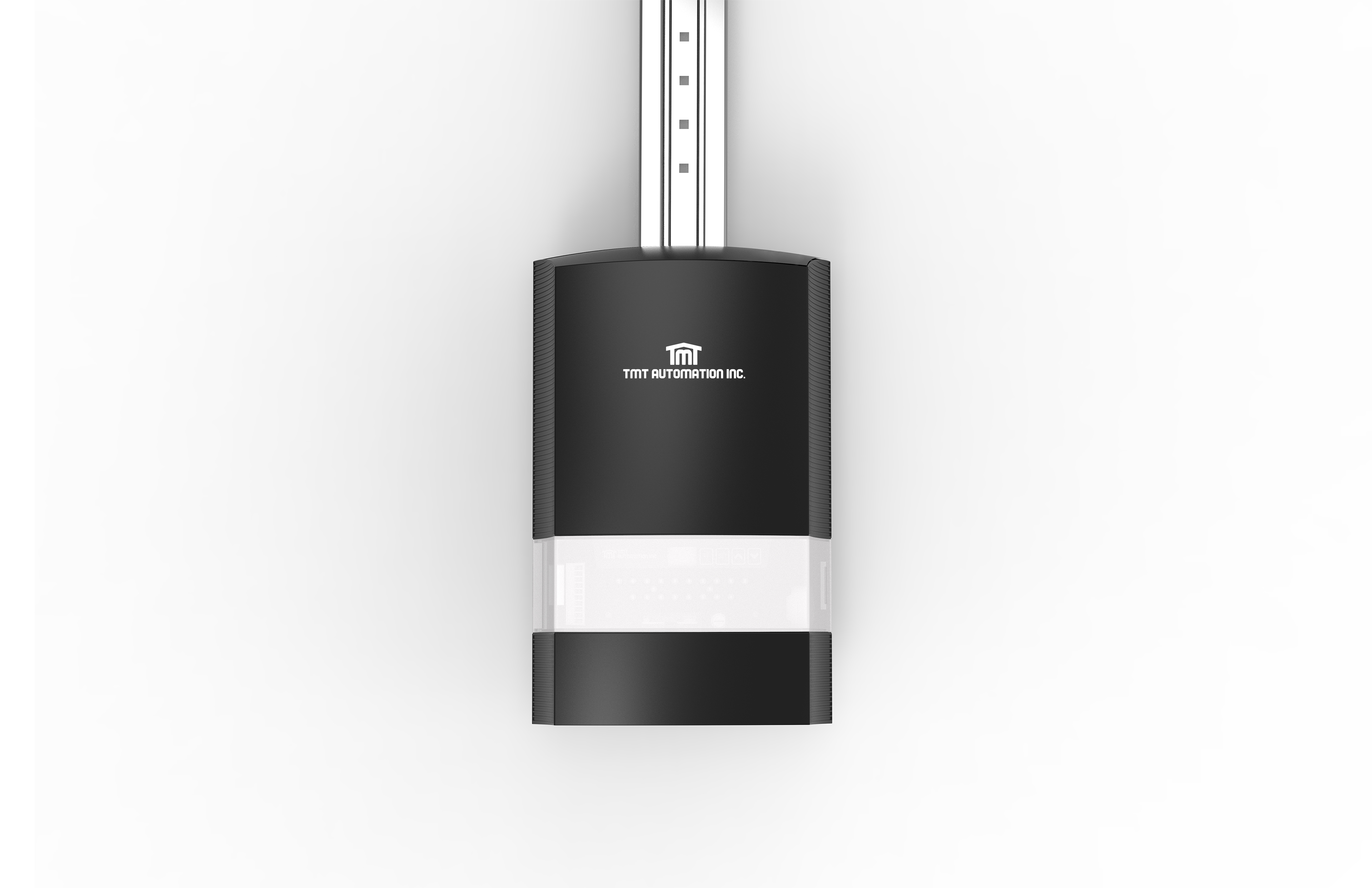

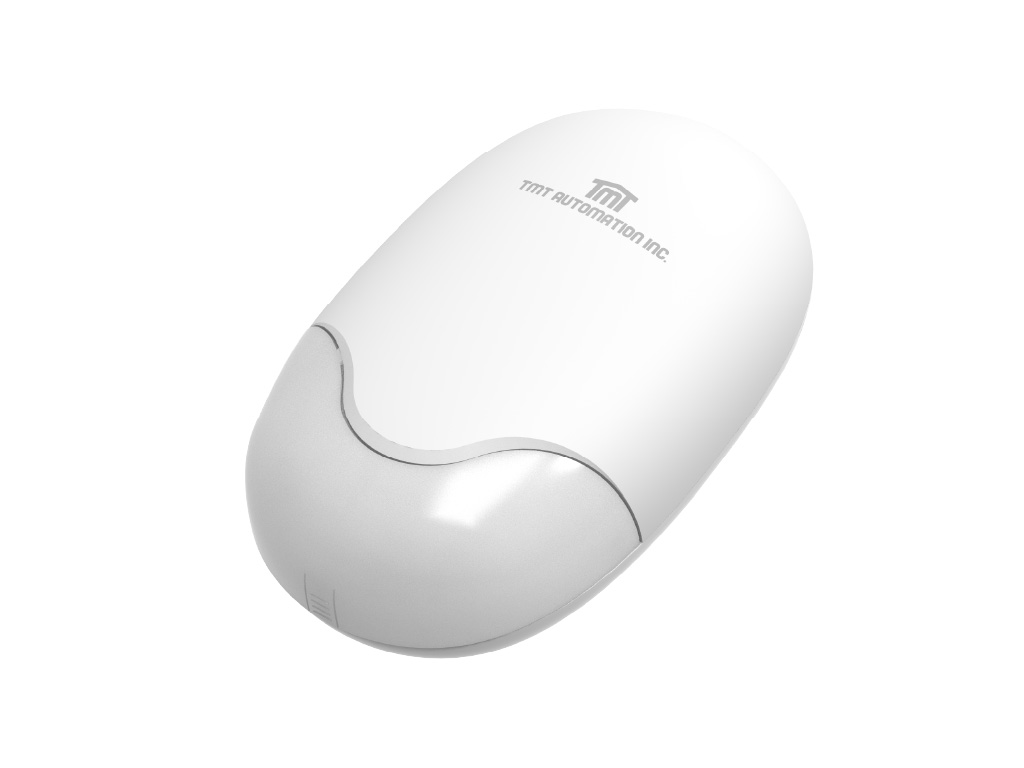

MARBLE
MARBLE 80
Maximum Door Area 10~12m2
Force 800N
MARBLE 100
Maximum Door Area 12~14m2
Force 1000N
MARBLE 120
Maximum Door Area 14~16m2
Force 1200N
MARBLE 120 MARBLE 120
MARBLE
MARBLE 80/100/120
Features
Tranquillity
-Experience smooth and quiet operation by using DC motor
-Both belt and chain rail are available for purchase

Extra Safety
-Additional backup battery is available which allows you to open/close your door even when the power is out
-Soft start/stop operation can extend hardware life and reduce maintenance
-Motor built-in with LED light

Built-in Smart Control
-Remotely open and close gates with Chow! App
-Programming the motor through Chow! App
-Secure your house even better with ChowCAM and ChowBELL
Specifications

MARBLE 80
MARBLE 100
MARBLE 120
Rated Door Area
10~12m2
12~14m2
14~16m2
Power
80W
100W
120W
Motor Power Supply
24VDC
24VDC
24VDC
Rail
Steel/Aluminum/T track
Steel/Aluminum/T track
Steel/Aluminum/T track
Rail Length(m)
3.3/3.6/3.9
3.3/3.6/3.9
3.3/3.6/3.9
Peak Thrust
800N
1000N
1200N
Speed(mm/sec)
140
1404
140
Drive
Chain/Belt
Chain/Belt
Chain/Belt
Lighting System
LED
LED
LED

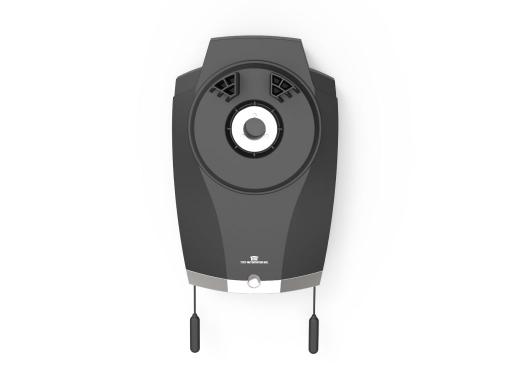

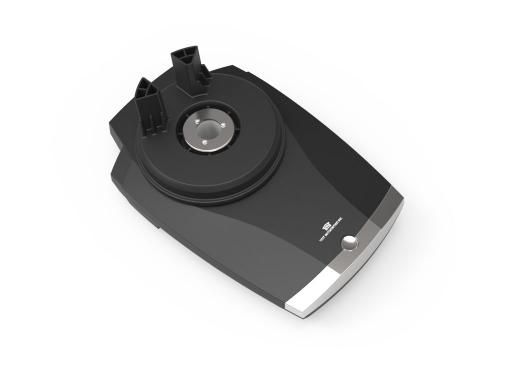

MAX
Max
Maximum Door Area 18m2
Force 650N
MARBLE 120 MARBLE 120
MAX
MAX
Features
Extra Safety
-Additional backup battery is available which allows you to open/close your door even when the power is out
-Soft start/stop operation can extend hardware life and reduce maintenance

Built-in Smart Control
-Remotely open and close gates with Chow! App
-Programming the motor through Chow! App
-Secure your house even better with ChowCAM and ChowBELL
Specifications

MAX
Rated Door Area
18m2
Power
120W
Motor Power Supply
24VDC
Rail
Rail Length(m)
Peak Thrust
650N
Speed(mm/sec)
35mm
Drive
Lighting System
