Sliding Gate Sliding Gate
Stylish Design
Reliable Functions
Motor speed can go up to 33cm/s with 500kg force.
Manual release is available when meeting emergencies.
Modern Design
Safe Operation
Manual Release
Quality Guarantee
Back-up Battery
Easy Installation

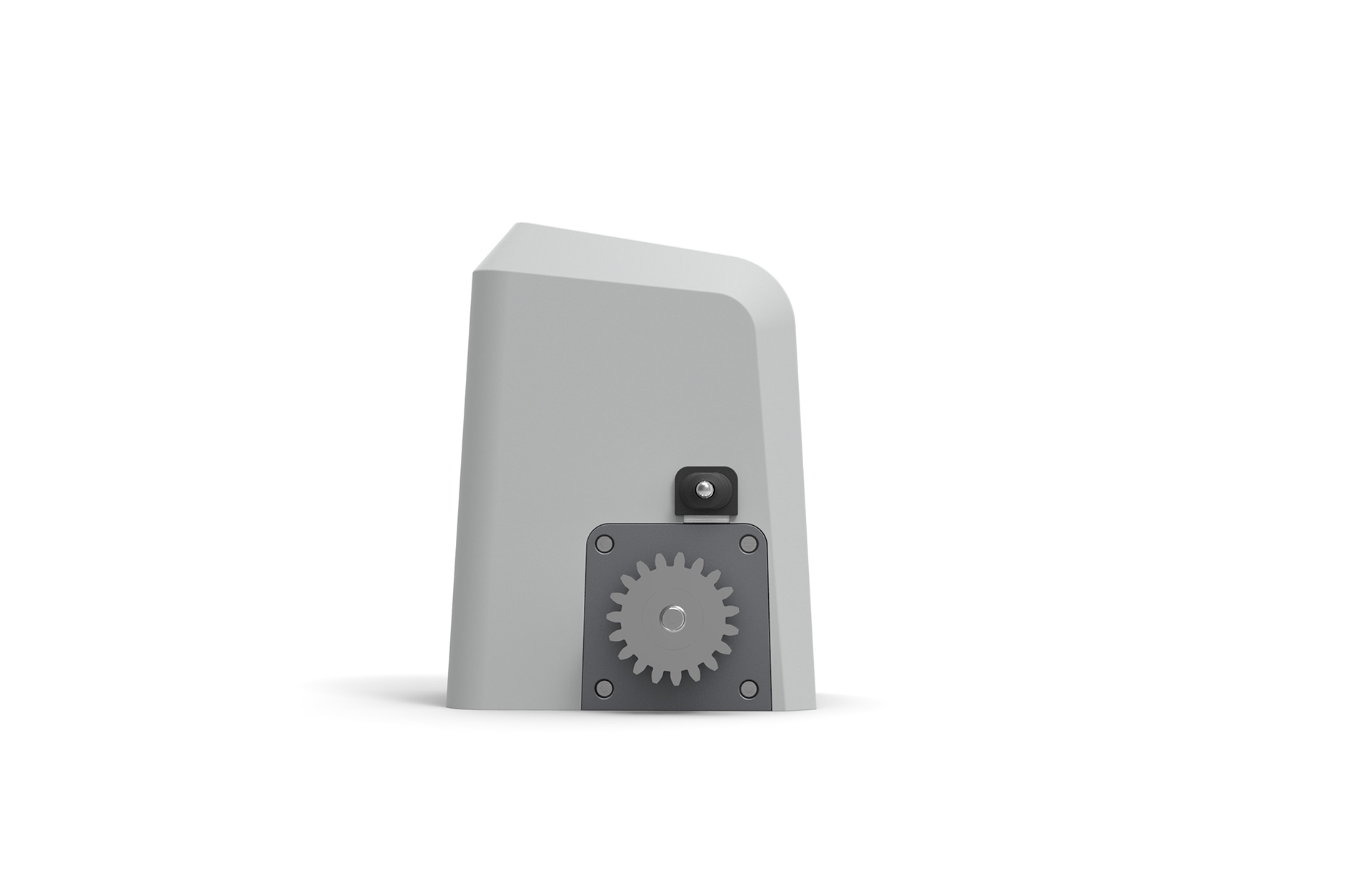

BOXER
BOXER 800
Maximum Gate Weight 800KG
Maximum Gate Length 8M
BOXER 500
Maximum Gate Weight 500KG
Maximum Gate Length 6M
BOXER 500 BOXER 500
BOXER
BOXER 500/800
Features
Motor Current Detection
-Allows users to monitor the motor operation status through the LED display panel on the control board

High Speed Version
-Motor speed can go up to 33cm/s with 500kg force

Effortless Quick Release Device
-Using specific key to release which is more secure

Built-in Smart Control
-Remotely open and close gates with Chow! App
-Programming the motor through Chow! App
-Secure your house even better with ChowCAM and ChowBELL

Specifications

BOXER 500
BOXER 800
Max Gate Length
6M
8M
Max Gate Weight
500Kg
800Kg
Gear Type
Worm Gear
Worm Gear
Power Supply
110-240VAC (50-60Hz)
110-240VAC (50-60Hz)
Motor Power Supply
12VDC / 24VDC
24VDC
Peak Thrust
5000N
8000N
Enclosure Dimensions(mm)
250*170*265
250*170*265
Manual Release
Key
Key
HUSKY
HUSKY 700
Maximum Gate Weight 700KG
Maximum Gate Length 8M
HUSKY 1200
Maximum Gate Weight 1200KG
Maximum Gate Length 12M
HUSKY 1500
Maximum Gate Weight 1500KG
Maximum Gate Length 12M
BOXER 500 BOXER 500
HUSKY
HUSKY 700/1200/1500
Features
User Friendly Design
-The control panel uses rotary knob for adjusting overcurrent and resistance

Perfect for Heavy gate Application
-AC motor with great force up to 1500Kg output

Built-in Smart Control
-Remotely open and close gates with Chow! App
-Programming the motor through Chow! App
-Secure your house even better with ChowCAM and ChowBELL
Specifications

HUSKY 700
HUSKY 1200
HUSKY 1500
Max Gate Length
8M
12M
12M
Max Gate Weight
700Kg
1200Kg
1500Kg
Gear Type
Worm Gear
Worm Gear
Worm Gear
Power Supply
230VAC (50Hz)
230VAC (50Hz)
230VAC (50Hz)
Motor Power Supply
230VAC (50Hz)
230VAC (50Hz)
230VAC (50Hz)
Peak Thrust
7000N
12000N
15000N
Enclosure Dimensions(mm)
246*172*325
246*172*325
246*172*325
Manual Release
Allen Key
Allen Key
Allen Key
