Swing Gate Swing Gate
Guaranteed Quality
Easy Maintenance
Motor operating duty cycle high enough which can sustain intensive use.
Manual release is available when meeting emergencies.
Light Weight
Stable Operation
Manual Release
Quality Guarantee
High Compatibility
Easy Installation
TERRIER
TERRIER 150
Maximum Gate Weight 200KG
Maximum Gate Length 2M
TERRIER 200
Maximum Gate Weight 250KG
Maximum Gate Length 2.5M
TERRIER 200 TERRIER 200
TERRIER
TERRIER 150/200
Features
Perfect Choice for Swing gates under 200 kg
-Motor operating duty cycle high enough which can sustain intensive use
-High flexibility on installation: no left/right motor differentiation

Easy Manual Release
-Allen Key manual release is available when meeting emergencies

Smart Control with CB series
-Remotely open and close gates with Chow! App
-Programming the motor through Chow! App
-Secure your house even better with ChowCAM and ChowBELL
Specifications

TERRIER 150
TERRIER 200
Max Gate Length
2M
2.5M
Max Gate Weight
200Kg
250Kg
Gear Type
Worm Gear
Worm Gear
Power Supply
110-240VAC (50-60Hz)
110-240VAC (50-60Hz)
Motor Power Supply
24VDC
24VDC
Peak Thrust
2000N
2500N
Enclosure Dimensions(mm)
674*98*170
799*98*170
Manual Release
Allen Key
Allen Key
MASTIFF
MASTIFF 300
Maximum Gate Weight 300KG
Maximum Gate Length 3M
MASTIFF 400
Maximum Gate Weight 350KG
Maximum Gate Length 3.5M
MASTIFF 400L
Maximum Gate Weight 450KG
Maximum Gate Length 4.5M
TERRIER 200 TERRIER 200
MASTIFF
MASTIFF 300/400/400L
Features
Ideal Choice for Swing gates up to 300~450 kg
-Motor operating duty cycle high enough which can sustain intensive use
-Variety selection: 300 kg/350 kg/450 kg per leaf for Mastiff series

Quick Release Device
-Manual release on the top for easy operation
-Using specific key to release which is more secure

Smart Control with CB series
-Remotely open and close gates with Chow! App
-Programming the motor through Chow! App
-Secure your house even better with ChowCAM and ChowBELL
Specifications

MASTIFF 300
MASTIFF 400
MASTIFF 400L
Max Gate Length
3M
3.5M
4.5M
Max Gate Weight
300Kg
350Kg
450Kg
Gear Type
Worm Gear
Worm Gear
Worm Gear
Power Supply
110-240VAC (50-60Hz)
110-240VAC (50-60Hz)
110-240VAC (50-60Hz)
Motor Power Supply
24VDC
24VDC
24VDC
Peak Thrust
3000N
3500N
4500N
Enclosure Dimensions(mm)
844*115*106
837*123*124
1027*123*124
Manual Release
Key
Key
Key
MASTIFF LS
MASTIFF 300LS
Maximum Gate Weight 300KG
Maximum Gate Length 3M
MASTIFF 400LS
Maximum Gate Weight 350KG
Maximum Gate Length 3.5M
MASTIFF 400LLS
Maximum Gate Weight 450KG
Maximum Gate Length 4.5M
TERRIER 200 TERRIER 200
MASTIFF LS
MASTIFF 300LS/400LS/400LLS
Features
Quicker and Easier
-Easy access to limit switch: removable cover on the top of the motor makes it quicker to adjust the limit switch

Ideal Choice for Swing gates up to 300~450 kg
-Motor operating duty cycle high enough which can sustain intensive use
-Variety selection: 300 kg/350 kg/450 kg per leaf for Mastiff series
-Manual release on the top for easy operation

Smart Control with CB series
-Remotely open and close gates with Chow! App
-Programming the motor through Chow! App
-Secure your house even better with ChowCAM and ChowBELL
Specifications

MASTIFF 300LS
MASTIFF 400LS
MASTIFF 400LLS
Max Gate Length
3M
3.5M
4.5M
Max Gate Weight
300Kg
350Kg
450Kg
Gear Type
Worm Gear
Worm Gear
Worm Gear
Power Supply
110-240VAC (50-60Hz)
110-240VAC (50-60Hz)
110-240VAC (50-60Hz)
Motor Power Supply
24VDC
24VDC
24VDC
Peak Thrust
3000N
4000N
4500N
Enclosure Dimensions(mm)
844*115*106
935*172*325
1041*172*325
Manual Release
Key
Key
Key
PAPILLON
PAPILLON 250
Maximum Gate Weight 250KG
Maximum Gate Length 2.5M
TERRIER 200 TERRIER 200
PAPILLON
PAPILLON 250
Features
Spaceless Installation for gates under 250 kg
-Suitable for small gate installation, especially when there’s an installation space limitation

Variable Motor Type
-Customers can choose to use hall sensor, limit switch or stopper based on the requirements
-Aluminum die-casting and steel metal stamping arms are available

Built-in Smart Control
-Remotely open and close gates with Chow! App
-Programming the motor through Chow! App
-Secure your house even better with ChowCAM and ChowBELL
Specifications

PAPILLON 250
Max Gate Length
2.5M
Max Gate Weight
250Kg
Gear Type
Worm Gear
Power Supply
110-240VAC (50-60Hz)
Motor Power Supply
24VDC
Peak Thrust
2500N
Enclosure Dimensions(mm)
256*187*267
Manual Release
Key
ARMSTRONG
ARMSTRONG 300
Maximum Gate Weight 300KG
Maximum Gate Length 3M
ARMSTRONG 400
Maximum Gate Weight 400KG
Maximum Gate Length 4M
TERRIER 200 TERRIER 200

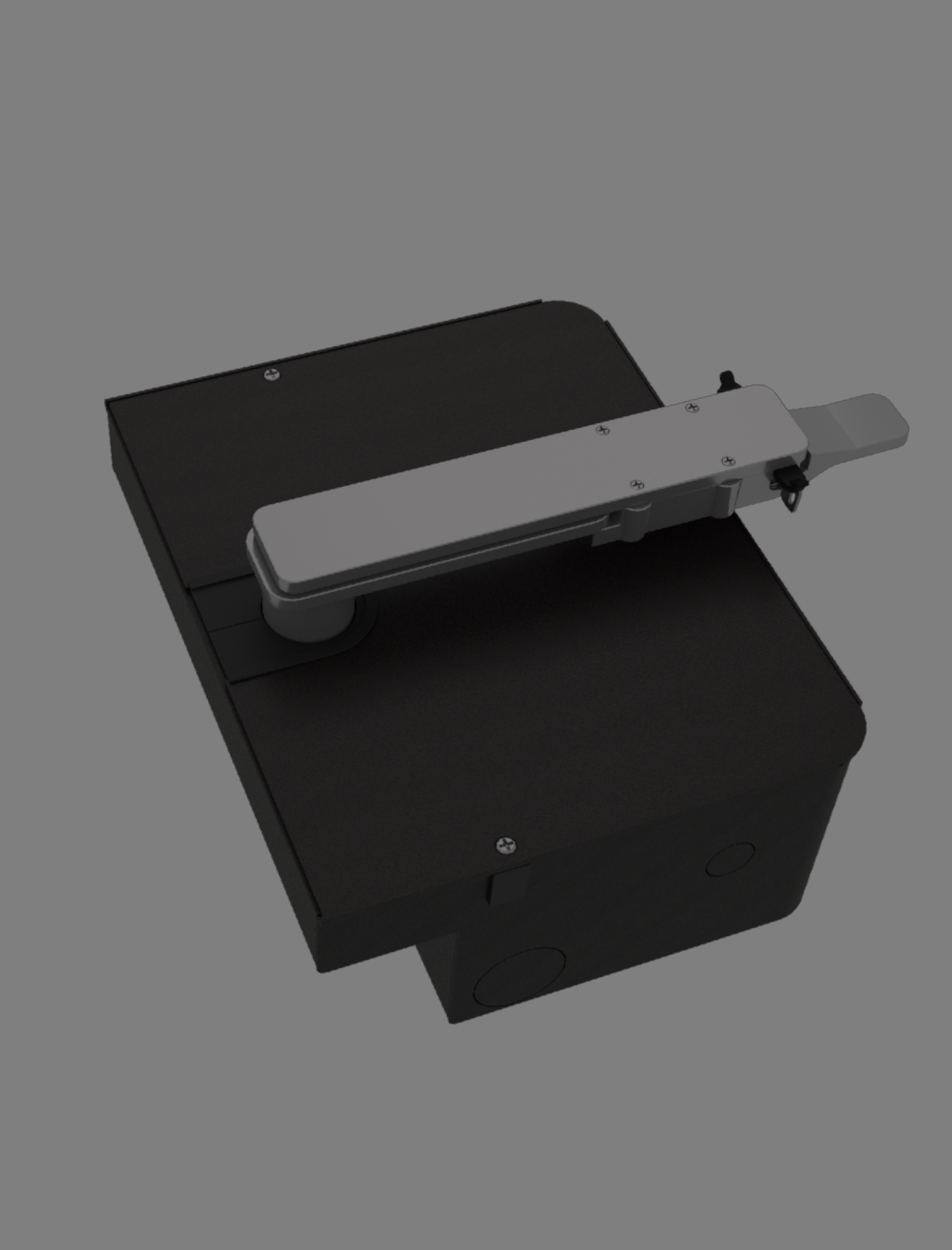

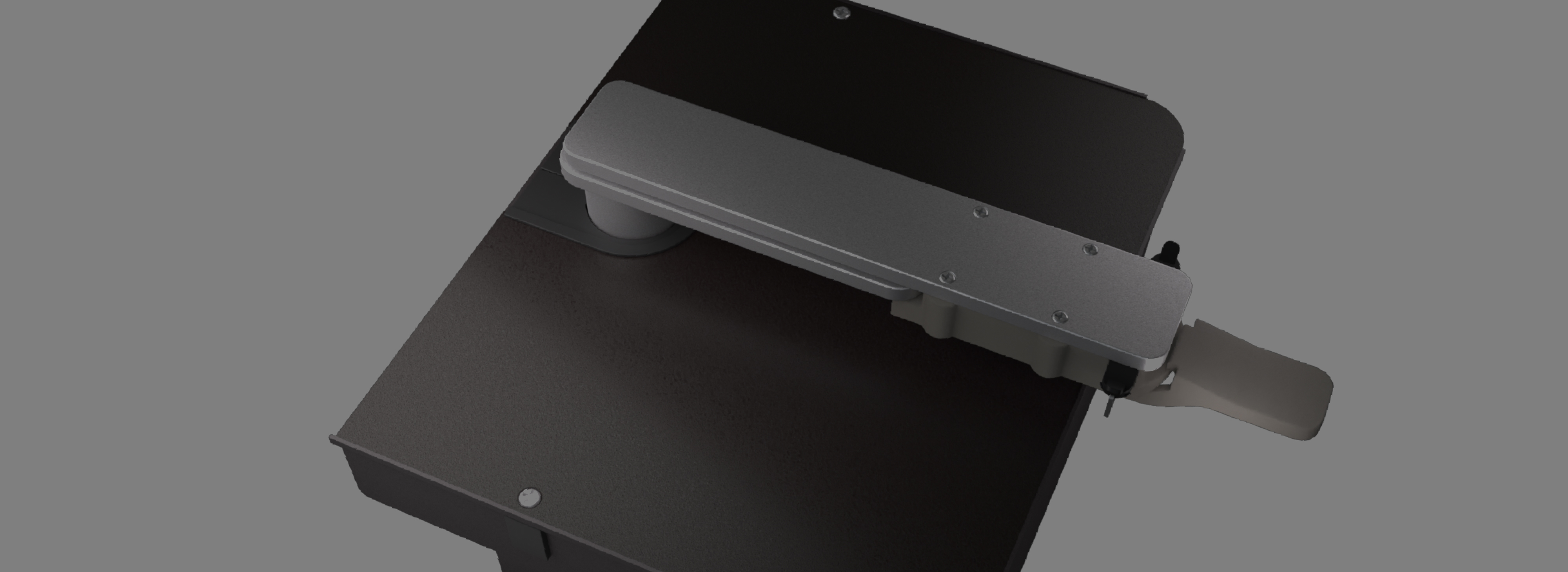

ARMSTRONG
ARMSTRONG
Features
INBUILT BLUETOOTH
SMARTPHONE -CONTROLLED MODULE

Easier & quicker setup procedure via Bluetooth
More stable close-distanced operation (Bluetooth range: 10m)

PERFECT FOR 4M GATE/LEAF & 400KG-WEIGHT GATE/LEAF
Opening angle can be 120° MAX

Hex key release for power failure.
38 functions for adjustment.
Slowdown area for smoother operation.
Several operation modes to meet different installation scenario.
Specifications

ARMSTRONG 300
ARMSTRONG 400

Leaf length (M)
3
4

Leaf weight (KG)
300
400

Output voltage
230VAC
230VAC

Motor speed (RPM)
1450
1450

Operating temperature
-20°C+50°C
-20°C+50°C

Waterproof
IP44
IP44

Stroke length
300mm
400mm









Clifford
Clifford 300
Maximum Gate Weight 350KG
Maximum Gate Length 3M
Clifford 400
Maximum Gate Weight 450KG
Maximum Gate Length4.5M
TERRIER 200 TERRIER 200
Clifford
CLIFFORD 300/400
Features
Perfect Choice for Swing gates under 350-450 kg
-Motor operating duty cycle high enough which can sustain intensive use
-High flexibility on installation: no left/right motor differentiation

Easy Manual Release
-Allen Key manual release is available when meeting emergencies

Smart Control with CB series
-Remotely open and close gates with Chow! App
-Programming the motor through Chow! App
-Secure your house even better with ChowCAM and ChowBELL
Specifications

Clifford 300
Clifford 400

Volt
110V / 240V; 50Hz~60Hz
110V / 240V; 50Hz~60Hz

DC 24V
DC 24V
DC 24V

Max. Gate Weight
350 / per leaf
450 / per leaf

Max. Gate Length
3.0米 / per leaf
4.5米 / per leaf

Gear Type
Worm gear
Worm gear

Dimension (mm)
928 x 136 x 128
1117.5 x 136 x 128

Power
144W
144W

Manual Release
Key
Key

Hermit
Hermit
Maximum Gate Weight 350KG
Maximum Gate Length3.5M
TERRIER 200 TERRIER 200

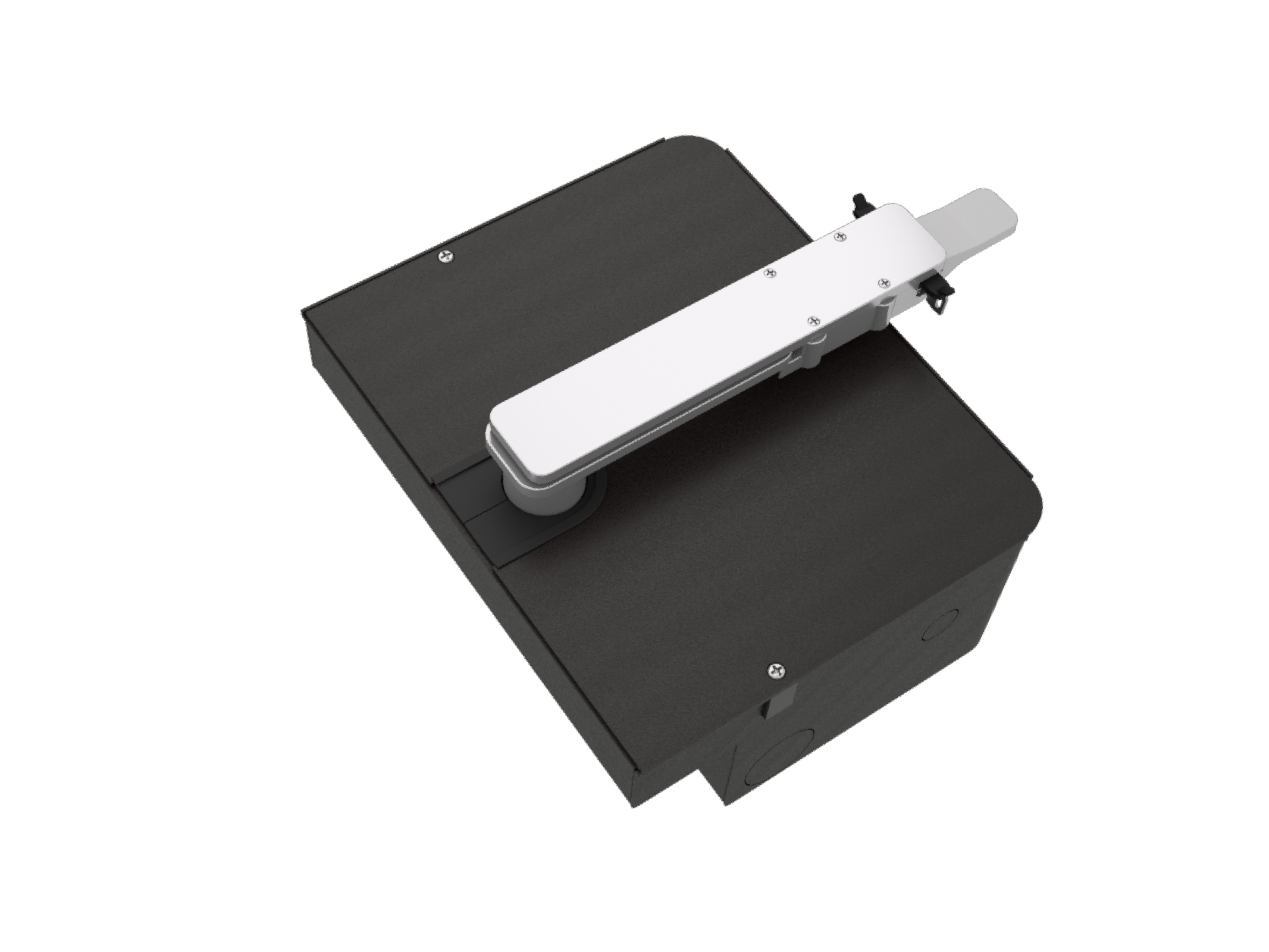

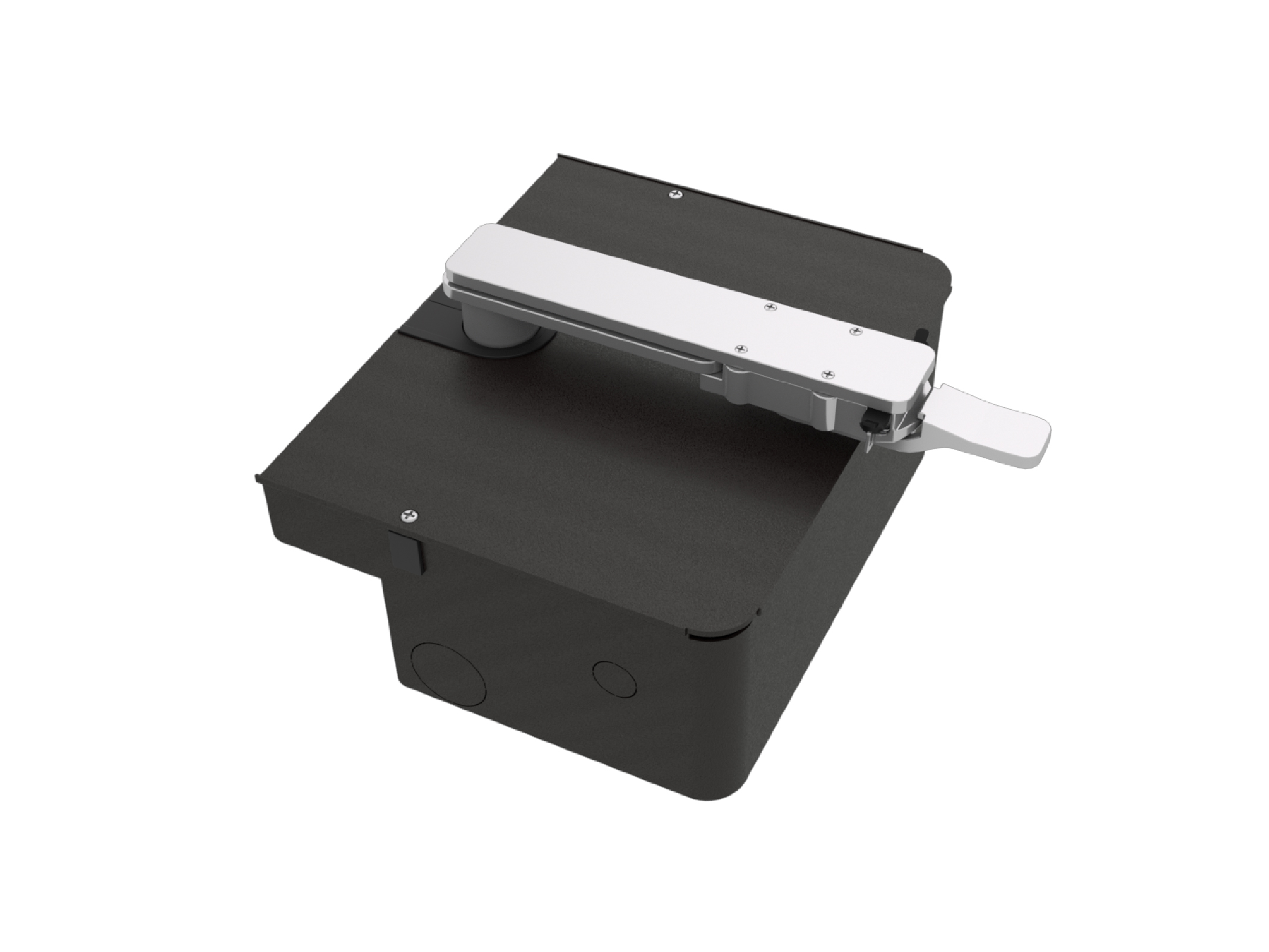

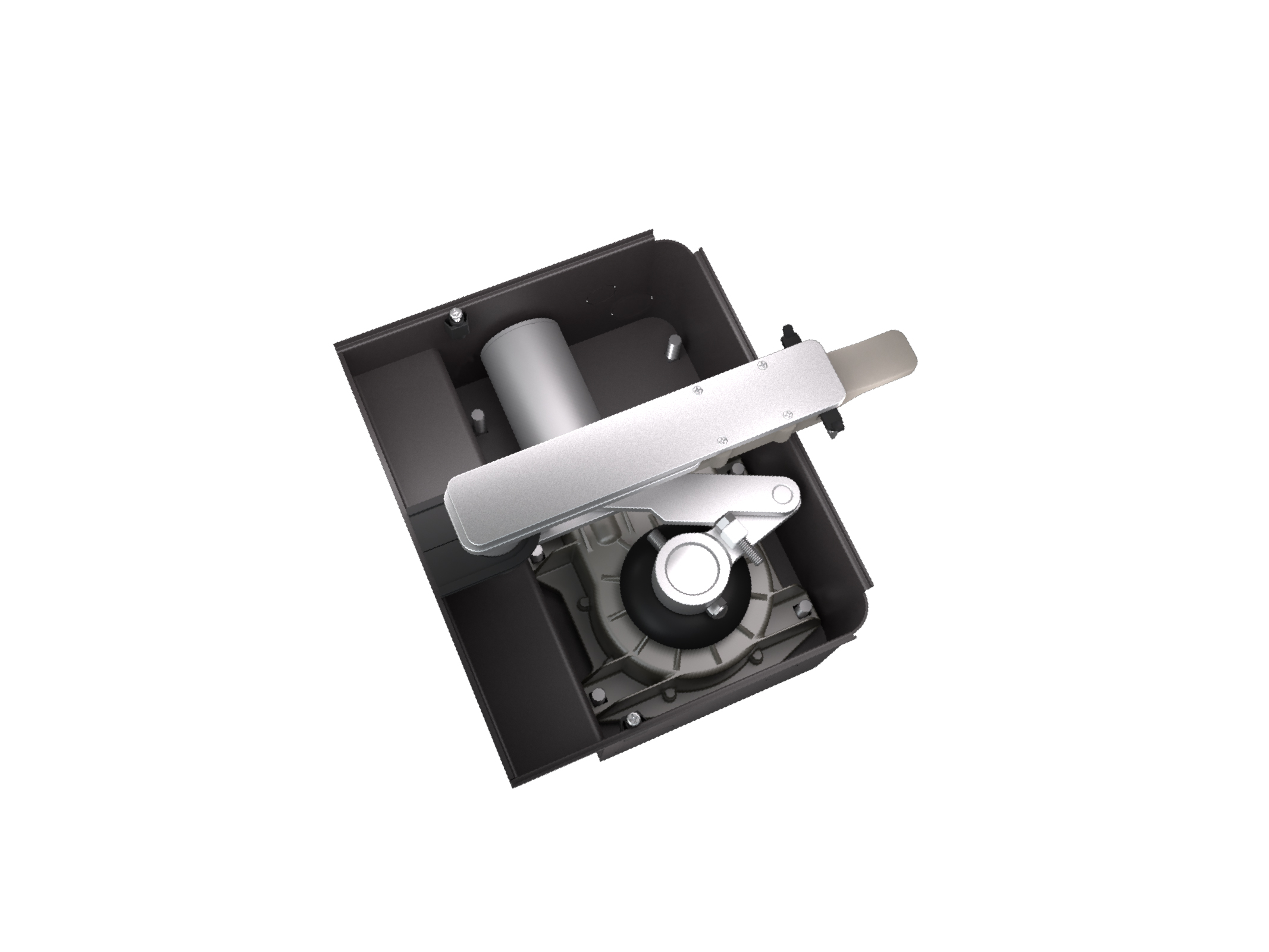

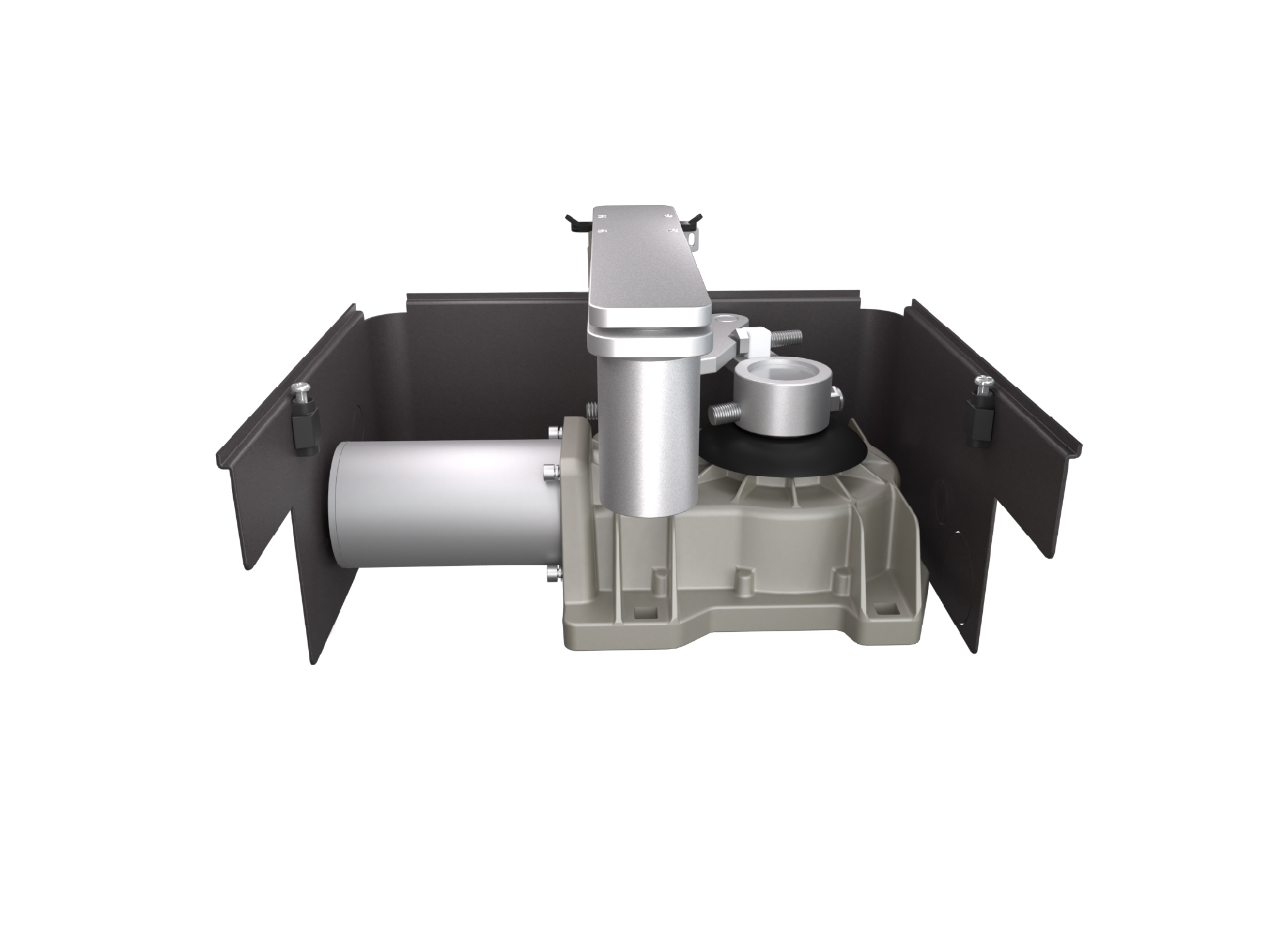

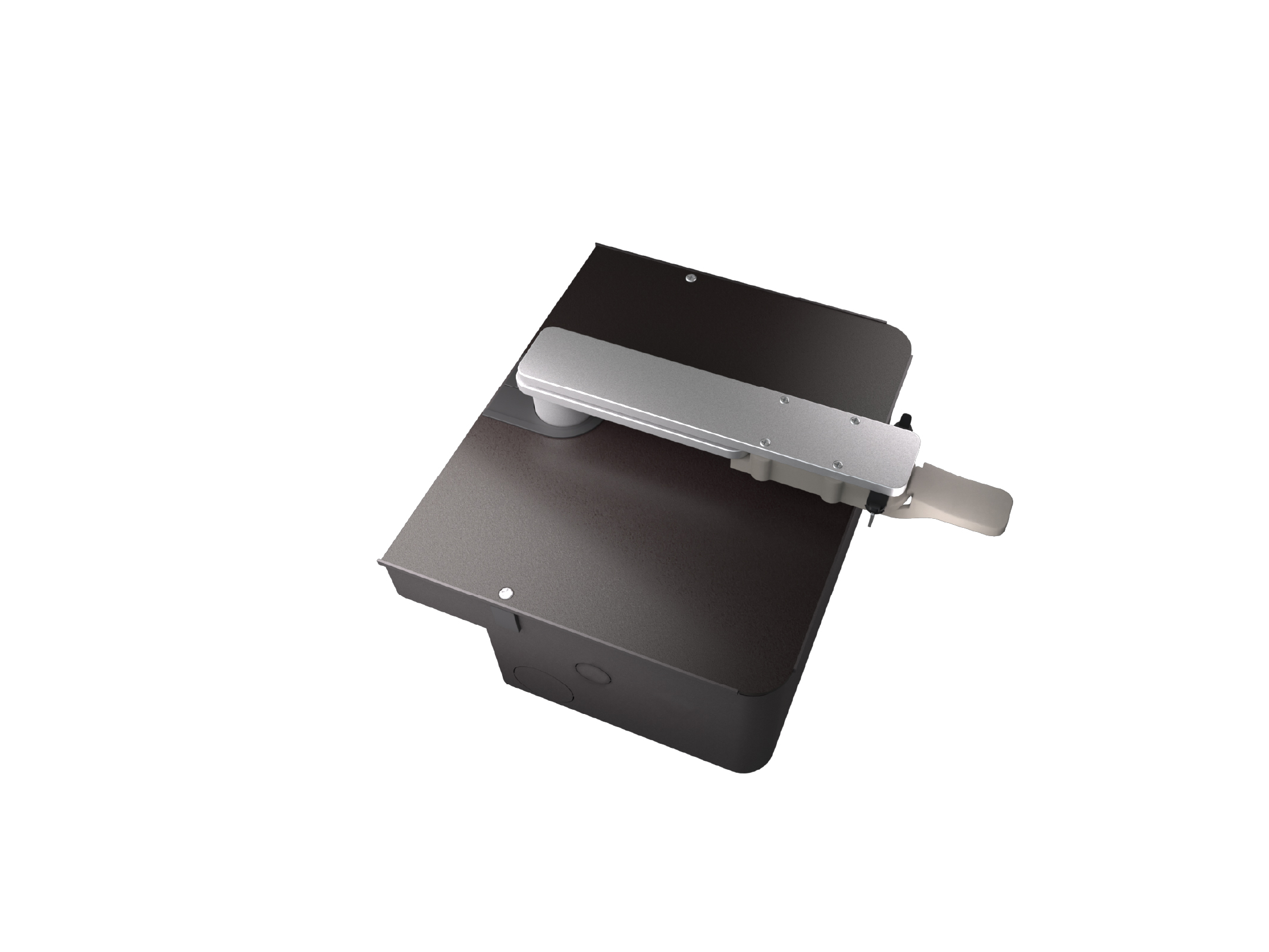

Hermit
Hermit
Features
The invisible Gate Opener
-Designed to operate down below the ground which has no apparent motor structure attached on the gate.
-DC swing system for better speed adjustment and slow down.
-Adjustable Open and Close points to determine the travel easily.
-Key release design for power failure.

Safe & Easy To Operate
-Compatible with safety device and access control system .
-Easy parameters adjusting with digits led display and buttons .
-6 categories / 20+ parameters meet the request of different gates.

Smartphone control
-Control your gates with TMT Chow! app anytime, anywhere .
Specifications
Volt
110V / 240V; 50Hz~60Hz
Motor Volt
DC 24V
Max. Gate Weight
350 / per leaf
Max. Gate Length
3.5m / per leaf
Gear Type
Worm gear
Dimension (mm)
389 x 320 x 222
Power
250W
Manual Release
Key
