Connect to LAN cable
- Please connect your ChowBELL to the Wi-Fi network before connect to the LAN cable.
- ChowBELL has a RJ45 port which is used for connecting to the router with a LAN cable
Hardware installation

❶
Choose a proper location for the ChowBELL, be sure to consider the average height of the visitors.

❷
Connect the12V Power plug to the DC cable.

❸
Align the DC cable, LAN cable (optional) and wall mount bracket with the hole on wall; fasten the wall mount bracket.

❹
Connect the DC cable to the ChowBELL

❺
Please refer to page 7 Connect ChowBELL to Chow! App to finish the Wi-Fi connection.

❻
Connect the LAN cable (optional) to the back of the ChowBELL.

❼
Fasten the ChowBELL on the wall mount bracket with an allen key and a screw from parts package.

❽

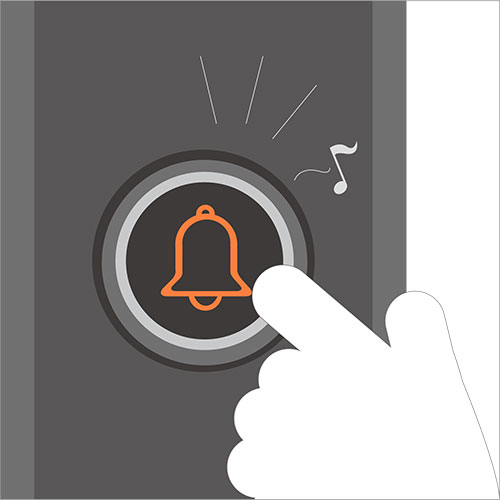

Press the call button and the ChowBELL will ring when it is well connected to power supply.

***Please make sure the Wi-Fi you connected and the LAN cable are going to connect is shared the same SSID***
